Industrial Airmove Stand Fan Manufacturer
Shanghai Aipu Fans Co., Ltd. is a China-based manufacturer and supplier of high-performance Airmove Stand Fans, designed for industrial and commercial environments that require flexible, powerful airflow without permanent installation. Since 2006, we have focused on motor technology and manufacturing precision, delivering mobile ventilation solutions that combine the air-moving capability of HVLS fans with the portability of a floor-standing unit.
Our Airmove Stand Fan range includes models from 1 to 2 meters in diameter, all built with a full-metal frame, high-efficiency copper-core motor, and advanced variable frequency control. These fans are engineered for factories, warehouses, gymnasiums, construction sites, greenhouses, and livestock farms, providing cooling, ventilation, and air circulation where ceiling-mounted fans are impractical.
As an integrated manufacturing and trading company, we control the entire production process—from motor design to final assembly—in our 8,000 square meter facility. Every fan undergoes dynamic balance, noise, and durability testing, ensuring reliable operation for over 10,000 hours. We support OEM/ODM projects and offer customization in blade color, voltage, and control options.
Our Airmove Stand Fan Range
We offer a focused range of mobile floor fans, each tailored to specific airflow and mobility needs. The table below outlines the standard models and their key specifications.
| Model |
Fan Diameter |
Dimensions (W×D×H) |
Max Speed |
Weight |
Power |
Noise |
Protection |
| ASF-09 |
1m (3.3ft) |
1000×640×1100mm |
420 RPM |
65 kg |
0.35 kW |
<40 dB |
IP55 |
| ASF-12 |
1.3m (4.3ft) |
1310×640×1400mm |
380 RPM |
80 kg |
0.40 kW |
<40 dB |
IP55 |
| ASF-15 |
1.6m (5.2ft) |
1610×720×1700mm |
300 RPM |
92 kg |
0.55 kW |
<40 dB |
IP55 |
| ASF-20 |
2m (7ft) |
2100×720×2240mm |
200 RPM |
142 kg |
0.65 kW |
<40 dB |
IP55 |
Each model is available with 5 or 6 blades, and blade color can be customized (yellow, blue, silver, black, red). The standard control system uses a Kewo inverter, providing smooth start and precise speed adjustment.
Key Features and Engineering

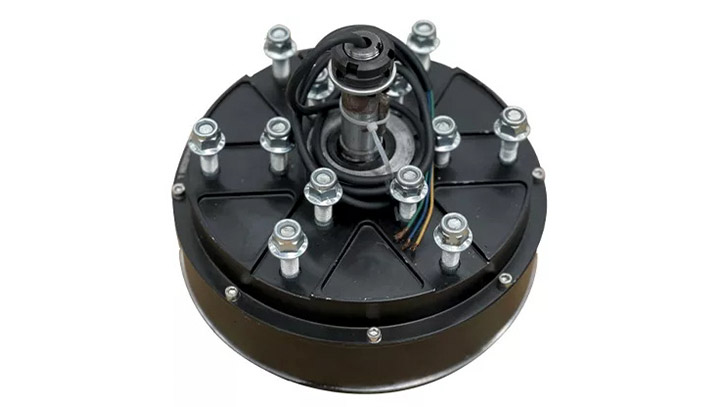

PMSM Motor Technology
Our stand fans use a permanent magnet synchronous motor (PMSM) that delivers nearly double the efficiency of induction motors. The brushless DC design reduces friction and energy loss, while 100% passive cooling keeps operating temperatures low. This results in a smaller, lighter, and more powerful motor that extends the fan's lifespan.

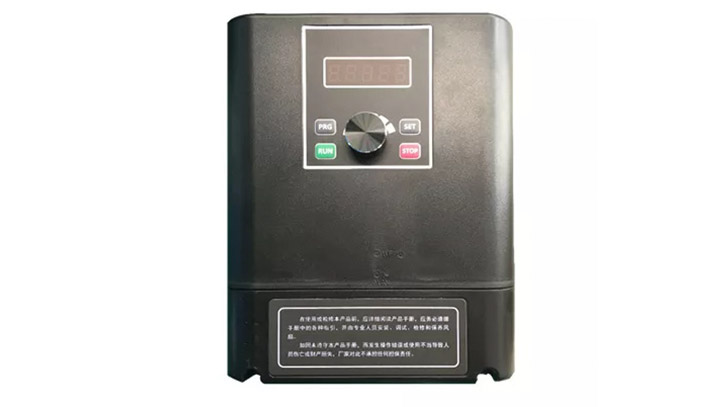

Variable Frequency Control
We integrate a Kewo inverter with high-performance vector control. This provides phase loss, overvoltage, overcurrent, overload, and ground protection, ensuring stable operation even in demanding power environments. Users can adjust wind speed via remote control or wall-mounted controller, with a range of 0–26 m/s depending on model.

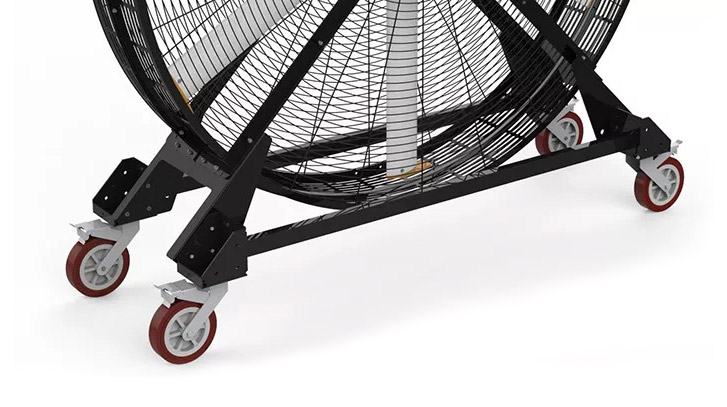

Durable Construction
Blades are made from a magnesium-aluminum alloy with a powder-coated finish (70±5 µm) that resists oxidation and corrosion. The frame and stand are impact-resistant, and the front wheels feature locking mechanisms to keep the fan stationary during operation.
Applications and Fit
Our Airmove Stand Fans are designed for spaces where ceiling-mounted fans are not feasible due to obstructions, low ceilings, or outdoor use. They are ideal for:
- Factories and workshops: Cooling workstations and dissipating heat or fumes.
- Warehouses and logistics centers: Improving air circulation for inventory preservation.
- Gymnasiums and sports arenas: Maintaining comfortable temperatures during activities.
- Agricultural barns and greenhouses: Managing airflow for livestock and crop health.
- Construction sites: Providing temporary ventilation in open or semi-enclosed areas.
- Retail and exhibition halls: Enhancing customer comfort and air quality.
The mobility of these fans allows you to reposition airflow as needs change, making them a flexible supplement to fixed ventilation systems.
Quality Assurance and Testing
Every fan is manufactured in our Shanghai factory, which is equipped with machining, cutting, welding, and testing centers. We adhere to CE and ISO 9001 standards. Each unit undergoes dynamic balance testing, noise measurement, and durability checks to ensure it meets our 10,000-hour operational target. Core components, including the motor and control system, are independently developed and sourced from reputable suppliers.
We provide a 3-year full-machine warranty and offer 24-hour after-sales response. For international projects, we provide installation guidance and logistics tracking to ensure smooth delivery and setup.
Customization and OEM Services
We support OEM and ODM projects, allowing you to tailor the fan to your specific requirements. Customization options include:
- Blade color and quantity (5 or 6 blades)
- Voltage and frequency (e.g., 380V/50Hz, 220V/60Hz)
- Control system interface (remote, wall-mounted, or integrated with BMS)
- Branding and packaging for distribution
Our engineering team works with you to define the optimal configuration based on your airflow requirements and installation environment.
Information We Use to Configure Your Solution
To prepare a precise quotation and technical proposal, we need the following project details:
- Application: Describe the space (factory, warehouse, etc.) and the primary purpose (cooling, ventilation, drying).
- Area dimensions: Floor area, ceiling height, and any obstructions that affect airflow.
- Number of fans: How many units you plan to deploy and their intended positions.
- Power supply: Available voltage and phase (e.g., 380V/3-phase).
- Environmental conditions: Temperature range, humidity, dust, or corrosive elements.
- Mobility requirements: Whether the fan needs to be moved frequently or remain stationary.
- Control preferences: Remote control, wall-mounted, or integration with existing systems.
With this information, we can recommend the appropriate model, blade configuration, and optional features to meet your performance and budget targets.
Frequently Asked Questions
What is the difference between Airmove Stand Fans and ceiling-mounted HVLS fans?
Airmove Stand Fans provide portable, floor-level airflow that can be directed where needed, making them ideal for spaces without suitable ceiling mounting points or with obstructions like cranes and conveyors. Ceiling fans offer whole-area coverage but require structural support and are permanent installations.
Can these fans be used outdoors?
Yes, the IP55 protection rating and corrosion-resistant materials allow outdoor use in environments like construction sites and open-air venues. However, we recommend protecting the fan from prolonged direct rain to maximize lifespan.
How do I control the fan speed?
Each fan comes with a Kewo inverter that supports precise speed adjustment. You can control it via the included remote control or a wall-mounted controller, depending on the model and configuration.
What is the warranty and after-sales support?
We provide a 3-year full-machine warranty. Our after-sales team is available 24 hours for technical support, and we offer installation guidance and spare parts supply.
Do you offer OEM/ODM services?
Yes, we support OEM and ODM projects. We can customize blade color, voltage, control systems, and branding to meet your distribution or project needs.
